Bandwagon said:
I hate a dewalt battery orbital sander. It's hooked up to a dust collection hose that goes to a dust separator, then a shopvac. The shopvac is two prong, no ground.

Every time I sand epoxy, the sander shocks the living shit out of me every 2 or 3 seconds. I also hear it affecting the sander as the RPMs decrease a bit, then ramps back up to full speed every time it shocks me. The shock comes from the speed dial on the sander.

I got some 14g wire and attached it to a bolt in the floor, then wrapped around the outside of the dust collection hose right where it connects to the sander (with an alligator clamp to the hose clamp that holds it on). That didn't change anything, so I wired it up to the ground prong on a 3-prong plug and plugged it in to a wall outlet. That didn't change anything either.

What's the trick to discharging some of the static electricity that this fucking resin builds up? Do I need a bare wire running through the INSIDE of the hose or something?
Click to expand...

Any chance the outlet you're using is accidentally wired with reverse polarity (flipped hot/neutral)? Try the sander on a different outlet on a different circuit. If something is miswired upstream on the cirtuit all the downstream outlets can be affected.

Take a multimeter and test the voltage between ground and a metal part on the sander. If it's causing the motor to change RPM this sounds like a more serious problem than static.

Last edited:
  • 2Like
Reactions: 1 users
Burns

Burns

Avatar of War Slayer
7,457
14,683
Bandwagon said:
I hate a dewalt battery orbital sander. It's hooked up to a dust collection hose that goes to a dust separator, then a shopvac. The shopvac is two prong, no ground.

Every time I sand epoxy, the sander shocks the living shit out of me every 2 or 3 seconds. I also hear it affecting the sander as the RPMs decrease a bit, then ramps back up to full speed every time it shocks me. The shock comes from the speed dial on the sander.

I got some 14g wire and attached it to a bolt in the floor, then wrapped around the outside of the dust collection hose right where it connects to the sander (with an alligator clamp to the hose clamp that holds it on). That didn't change anything, so I wired it up to the ground prong on a 3-prong plug and plugged it in to a wall outlet. That didn't change anything either.

What's the trick to discharging some of the static electricity that this fucking resin builds up? Do I need a bare wire running through the INSIDE of the hose or something?
Click to expand...
No solution here, but your post made me go look for some videos on sanding epoxy that I watched 6+ years ago. Didn't find them, but found a couple "pro" tip videos that were interesting enough to post.

Also, getting shocked when using electric tools should certainly be a bit of red flag.

Mainly using the airgun, constantly, to prevent clogs:
​

This guy takes it a step further and cleans the table every time too:
​

  • 1Like
Reactions: 1 user
Bandwagon

Bandwagon

Kolohe
<Silver Donator>
24,310
65,392
Captain Suave said:
Any chance the outlet you're using is accidentally wired with reverse polarity (flipped hot/neutral)? Try the sander on a different outlet on a different circuit. If something is miswired upstream on the cirtuit all the downstream outlets can be affected.

Take a multimeter and test the voltage between ground and a metal part on the sander. If it's causing the motor to change RPM this sounds like a more serious problem than static.
Click to expand...
Yea that's possible. The guy that wired this place did some weird shit. I'll check that out, thanks.

Bandwagon

Bandwagon

Kolohe
<Silver Donator>
24,310
65,392
Also, resin generated a shit ton of static apparently. It used to cause the CNC to shut down until I grounded the spindle.

BrutulTM

BrutulTM

Good, bad, I'm the guy with the gun.
<Silver Donator>
14,677
2,540
Bandwagon said:
Also, resin generated a shit ton of static apparently. It used to cause the CNC to shut down until I grounded the spindle.
Click to expand...

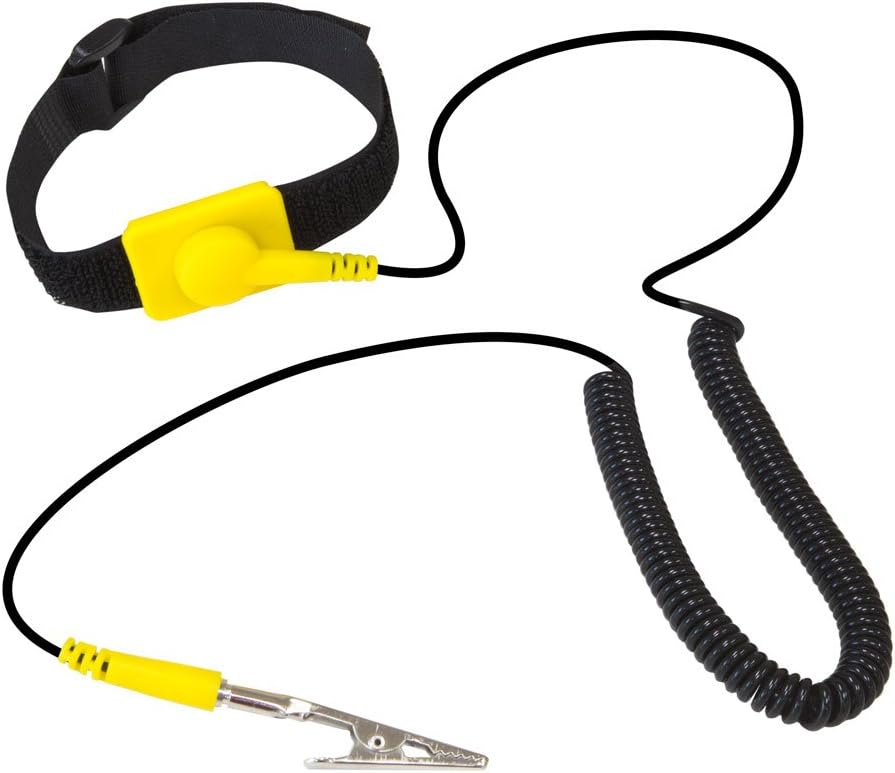

I think it has to be static. It's strange but there's no way the actual electricity from your shop vac is traveling to your sander and the DC voltage in your sander itself isn't enough to even feel a shock from. The fact that it only happens with the resin points that way too. I think you're barking up the wrong tree looking at your house wiring. Maybe try wearing a grounding strap like people do when working on sensitive electronics?


Siliconemelons

Siliconemelons

Naxxramas 1.0 Raider
11,913
17,887
I am wanting to make a lectern. I plan on carving the legs some - any recommendations on a good wood that looks nice, but can be carved fairly easy?

I always like mahogany in general lol… like for my cube cutting board… stupid AC project took out my garage for wood working.

whoo

whoo

<Silver Donator>
1,394
6,064
Siliconemelons said:
I am wanting to make a lectern. I plan on carving the legs some - any recommendations on a good wood that looks nice, but can be carved fairly easy?

I always like mahogany in general lol… like for my cube cutting board… stupid AC project took out my garage for wood working.
Click to expand...
If you mean you're carving by hand, cherry is a nice wood that carves easily

  • 1Like
Reactions: 1 user
C

Captain Suave

Caesar si viveret, ad remum dareris.
5,265
8,958
I really enjoy mechanically complicated joinery. I'm not remotely good enough to execute these in practice, but I'm sloooowly working towards incorporating some of these ideas into my projects.

Dorian Bracht runs an absolutely pornographic YT series titled "Joint Venture" where he goes through different types of Japanese joinery. He's just putting out a book that looks both gorgeous and informative. I'll probably pick up a copy.

www.tischlereibracht.com

The Ultimate Book on Japanese Joinery

This book showcases over 65 Japanese joints, for furniture and building construction, in great detail. On 175 Pages, this book disects the inner workings of many intriguing joints, breaking them down for anyone to understand. With detailed high resolution photography, well researched...
www.tischlereibracht.com www.tischlereibracht.com


  • 4Like
Reactions: 3 users
Intrinsic

Intrinsic

Person of Whiteness
<Gold Donor>
15,053
13,178
Captain Suave said:
I really enjoy mechanically complicated joinery. I'm not remotely good enough to execute these in practice, but I'm sloooowly working towards incorporating some of these ideas into my projects.

Dorian Bracht runs an absolutely pornographic YT series titled "Joint Venture" where he goes through different types of Japanese joinery. He's just putting out a book that looks both gorgeous and informative. I'll probably pick up a copy.

www.tischlereibracht.com

The Ultimate Book on Japanese Joinery

This book showcases over 65 Japanese joints, for furniture and building construction, in great detail. On 175 Pages, this book disects the inner workings of many intriguing joints, breaking them down for anyone to understand. With detailed high resolution photography, well researched...
www.tischlereibracht.com www.tischlereibracht.com

Click to expand...


Thanks, ordered! This looks great.

Bandwagon

Bandwagon

Kolohe
<Silver Donator>
24,310
65,392
Only took two Saturdays. That's a new record for me!

It's a very simple one, but I was using rough cut walnut so it took a long ass time to plane it all.

That last map table I made taught me a shit ton of little tricks, so the doweling and finishing went a whole lot faster on this one. I was worried it wouldn't be stable without some X braces or something, but it feels pretty solid and I assume it won't get abused much when it's behind the couch.

  • 6Like
Reactions: 5 users
whoo

whoo

<Silver Donator>
1,394
6,064
Bandwagon said:
Only took two Saturdays. That's a new record for me!

It's a very simple one, but I was using rough cut walnut so it took a long ass time to plane it all.

That last map table I made taught me a shit ton of little tricks, so the doweling and finishing went a whole lot faster on this one. I was worried it wouldn't be stable without some X braces or something, but it feels pretty solid and I assume it won't get abused much when it's behind the couch.
View attachment 543071View attachment 543072View attachment 543073View attachment 543074
Click to expand...
Good job, looks nice

1. Are the legs removable? Looks like you're supporting them with brackets and screws - did you dowel the legs?

2. What finish did you put on it?

Intrinsic

Intrinsic

Person of Whiteness
<Gold Donor>
15,053
13,178
I like that idea. Our couch is up against three windows though so would be worried about kids smacking into it and breaking glass. Would help keep our 1-year old from tossing remotes and books behind the couch though....

Nice man! Good work.

  • 1Like
Reactions: 1 user
Bandwagon

Bandwagon

Kolohe
<Silver Donator>
24,310
65,392
whoo said:
Good job, looks nice

1. Are the legs removable? Looks like you're supporting them with brackets and screws - did you dowel the legs?

2. What finish did you put on it?
Click to expand...
They're removable....for now at least. I used dowells and didn't glue them in yet.

It's Rubio monocoat

whoo

whoo

<Silver Donator>
1,394
6,064
Cool, seems like a good choice. Making useful stuff that looks nice is rewarding

  • 1Like
Reactions: 1 user
W

Woodmaster1

N00b
5
2
Bandwagon said:
Only took two Saturdays. That's a new record for me!

It's a very simple one, but I was using rough cut walnut so it took a long ass time to plane it all.

That last map table I made taught me a shit ton of little tricks, so the doweling and finishing went a whole lot faster on this one. I was worried it wouldn't be stable without some X braces or something, but it feels pretty solid and I assume it won't get abused much when it's behind the couch.
View attachment 543071View attachment 543072View attachment 543073View attachment 543074
Click to expand...
Thats some awesome work!
